300kg/h 3D Snack Pellet Making Line
I.Description
3D Snack Pellet Making Line is designed for making the pellets, chips, fried snacks by extruder machine. Raw materials can be potato starch, corn starch, wheat flour, cassava starch etc. Through the extruder cooking, the snacks can be shaped in many different shapes, like shell, screw, spiral, square tube, circle tube, and so on. After drying and frying, flavoring with the flavor powder can get delicious snacks food.
Also, by changing the shaping machine we can produce 3D pellet, waved chips, potato chips, shrimp chips and so on.
1. Raw materials: Potato Starch, Corn Starch , Wheat Flour, Cassava Starch etc.
2. Products: By changing the shaping machine, we can produce 3D pellet, waved chips, potato chips, shrimp chips and so on.
3. Capacity: 80-100kg/h, 250-300kg/h
4. Flow Chart: Mixing —Extrusion —Shaping —Drying —Frying —Flavoring
5. Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to customers' local voltage of different countries.
6. Machines Materials: All the machines are made by food grade stainless steel.
II. Details & Features

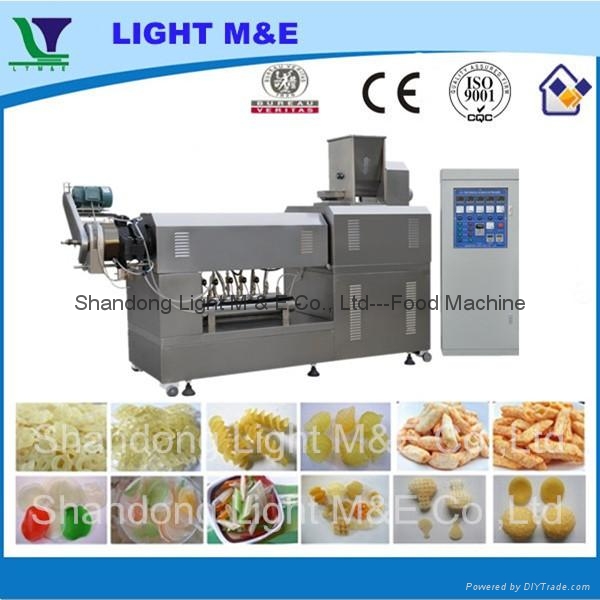

1. Big Capacity Feeding Hopper, Variable Frequency Speed, Two Stages Mixing Wings ensure the Fast and Efficient Mixing and Feeding.
2. Radiator Is Installed On Driving Part For Forces Cooling Effect, And It Ensures Extruder Operate Safely.
3. Main Motor Is Directly Connected With Bearing Box,Reducing Energy Loss And Saving Power.
4. Linear Slide Face Cutting System, Strong Power, Variable Frequency Speed and Large Output.
5. Barrel With Water-cooled Circulation And Water Tubes With Copper Material.Wide Ranges Of Raw Materials Can Be Used For A Long Time.
6. Modular Circular Groove Screws, Available For Different Extrusion Rate Applications.
7. Unique Designed Square Barrels, Made by Hard Carbide Sleeve, Hard-wearing and Durable.
8. PLC Touching Screen Controller(Optional),Supporting Many Kinds Of Languages,Can Preserve Various Operating Procedure,Ensuring Easy Operation And Low Failure Rate.
Besides
Main Motor from SIEMENS(CHINA), 55KW, Ensure Its Powerful Extrusion and Excellent Performance.
World-famous Brands Electronic Apparatus used in the Controller Box, make sure the Extrusion Process Perfect.
III. Flow Chart
IV. Technical Parameters
| Model |
Installed Power |
Power Consumption |
Output |
Size((L×W× H)) |
| LT100 |
172kw |
120kw |
80-100kg/h |
30000x1300x2300mm |
| FT75 |
234kw |
164kw |
250-300kg/h |
33000×1300×2300mm |
V. Sample Picture
VI. Packaging & Shippping
VII. Service & Turnkey Solution
1.) Consultation service before, during,and after sales;
2.) Project planning and design service;
3.) Debugging of equipment until everything is functional;
4.) Management of equipments' long distance shipping from seller's factory to the named place by buyer;
5.) Training of equipment maintenance and operating personally;
6.) New production techniques and formulas;
7.) Provide 1 year complete warranty and life-time maintenance service.
